TC Keypad
De-install
TC PIR Motion Sensor with Camera
De-install
TC Magnet Contact Sensor
De-install
TC Panel
De-install
De-install
- Underneath the key tag symbol/reader, push a flat-headed screwdriver into the slot and turn. This will remove the cover.
- Once cover is removed you will see a Phillips screw, unscrew using a Phillips (crosshead) screwdriver to remove the Keypad from the wall bracket.
- Once the keypad has been removed, unscrew the 3 screws that are securing the bracket to the wall with a Phillips (crosshead) screwdriver.
- Once de-installed, place bracket back onto the back of Keypad and keep in a safe location to avoid it being misplaced or damaged.
De-install
- Insert flat-headed screwdriver into the slot underneath the middle of the sensor. Push screwdriver away from you to release the cover.
- Take the sensor off the mounted wall bracket.
- Unscrew the 2 screws that are securing the bracket to the wall with a Phillips (crosshead) screwdriver.
- Once de-installed, place bracket back onto the back of the sensor and keep in a safe location to avoid it being misplaced or damaged.

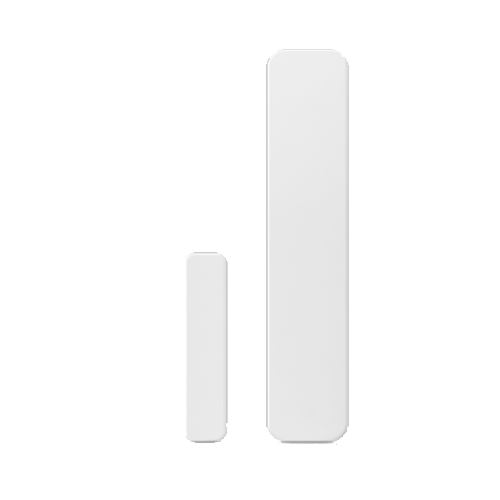

De-install
- Insert flat headed screwdriver into the T shaped slot on the larger sensor. Turn the screwdriver to release the cover.
- Once the cover has been removed, unscrew the 2 screws that are securing the bracket to the door/window with a Phillips (crosshead) screwdriver.
- To remove the small sensor (magnet piece) insert a small flat headed screwdriver into the slot at the end of the sensor to release the cover.
- Unscrew the 2 screws that are securing the bracket to the door/window with a Phillips (crosshead) screwdriver.
- Once de-installed, place bracket onto the back of each sensor and keep in a safe location to avoid it being misplaced or damaged.

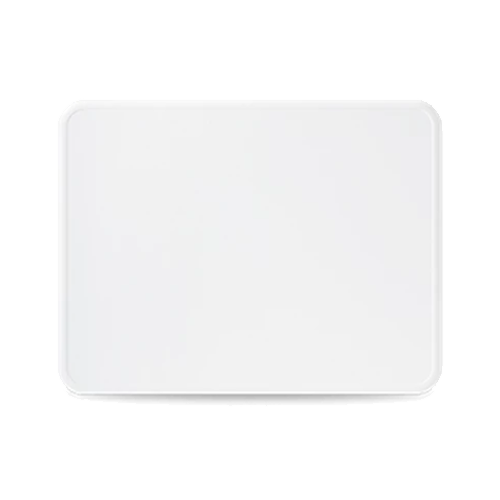

De-install
- Unplug panel from mains socket.
- Locate the Phillips screw on the side of the panel and remove using a Phillips (crosshead) screwdriver.
- Using a flat headed screwdriver insert it into the top of the slot where the Phillips screw was located and pull the screwdriver handle towards you. This will release the catch, and the panel lid can be easily removed.
- Once the panel lid has been removed, unscrew the 4 screws in each corner with a Phillips (crosshead) screwdriver to remove the panel from the wall.
- Place panel lid back on to panel and keep in a safe location to avoid it being misplaced or damaged.
