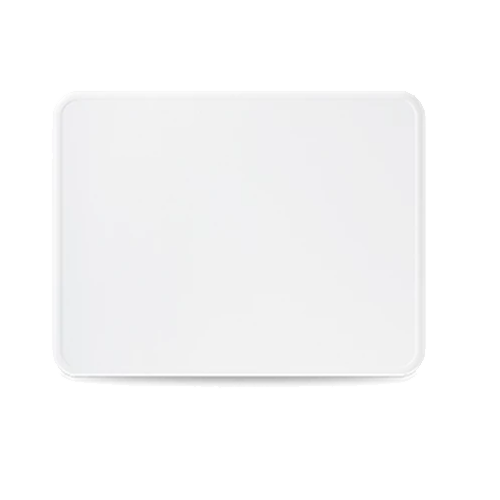

Domonial panel
This product needs to be re-installed by a security advisor to ensure the best alarm signals are received to function correctly. Please click here to arrange a service appointment via our chatbot.

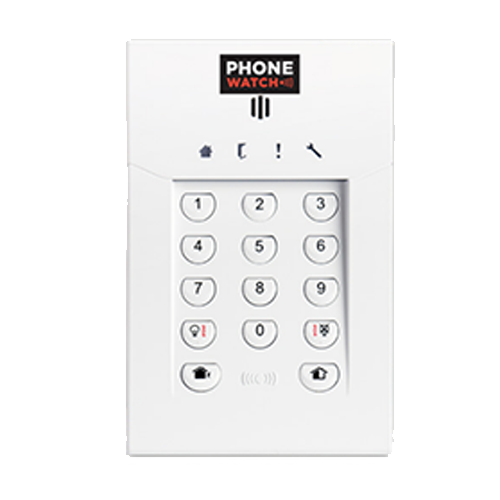

Domonial Keypad (GKP model)
Reinstall

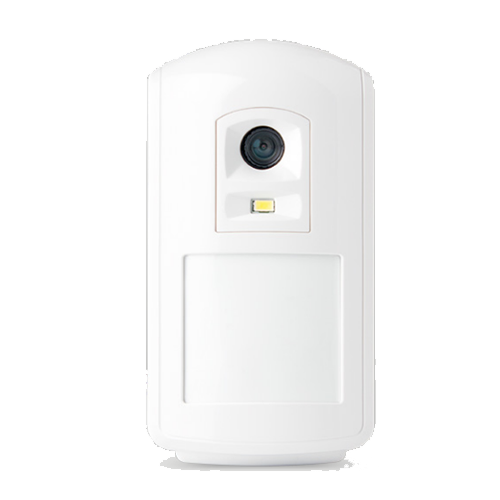

Domonial PIR Motion Sensor with Camera
Reinstall

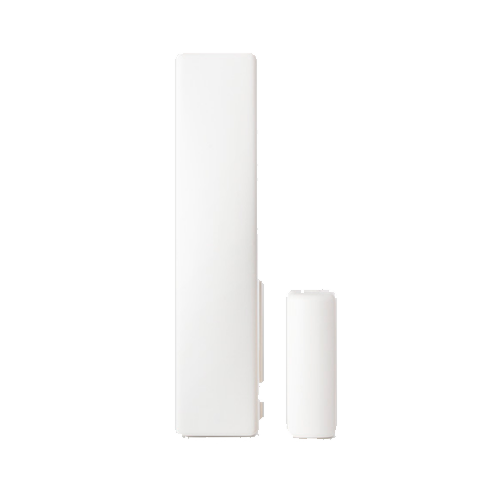

Domonial Magnet Contact Sensor
Reinstall
Domonial smoke detector (DFS8M model)
Reinstall
Re-install
- Align the keypad bracket, screw in the 3 screws to secure the bracket to the wall with a Phillips (crosshead) screwdriver or a drill.
- Slide the keypad downwards onto the bracket.
- Once the Keypad is placed onto the bracket, insert the screw at the top of the keypad with a small Phillips (crosshead) screwdriver.
- Wait 1 minute then enter your alarm code three times, lights on the keypad will clear. Any faults lights on Keypad, direct customer to chatbot or user manual.
Re-install
- Align the bracket, screw in the 4 screws to secure the bracket to the wall with a Phillips (crosshead) screwdriver or a drill.
- Place the sensor back onto the bracket – Insert top part of sensor first then bottom part. Make sure the sensor is clicked firmly into place.
- Wait 1 minute then enter your alarm code three times, lights on the keypad will clear. Any faults lights on Keypad, direct customer to chatbot or user manual.
Re-install
- Align the larger bracket with the door frame/window frame. Screw in the 2 screws to secure the bracket with a Phillips (crosshead) screwdriver or a drill.
- Align the sensor cover with the bracket by ensuring the ridges on each end match. Click the cover firmly into place.
- If necessary, insert the small screw on the side of the sensor.
- Align the smaller bracket onto the door/window itself. Screw in the 2 screws to secure the bracket to the door/window with a Phillips (crosshead) screwdriver or a drill.
- Align the sensor cover with the bracket by ensuring the ridges on each end match. Click the cover firmly into place.
- Once re-installed, wait 1 minute then enter your alarm code three times, lights on the keypad will clear. Any faults lights on Keypad, direct customer to chatbot or user manual.
Re-install
- Align the bracket with the ceiling and screw in the screws to secure the bracket back onto the ceiling with a Phillips (crosshead) screwdriver.
- Once bracket is back on the ceiling, place smoke detector back onto bracket and twist anticlockwise to secure.
- Wait 1 minute then enter your alarm code three times, lights on the keypad will clear. Any faults lights on Keypad, direct customer to chatbot or user manual.
